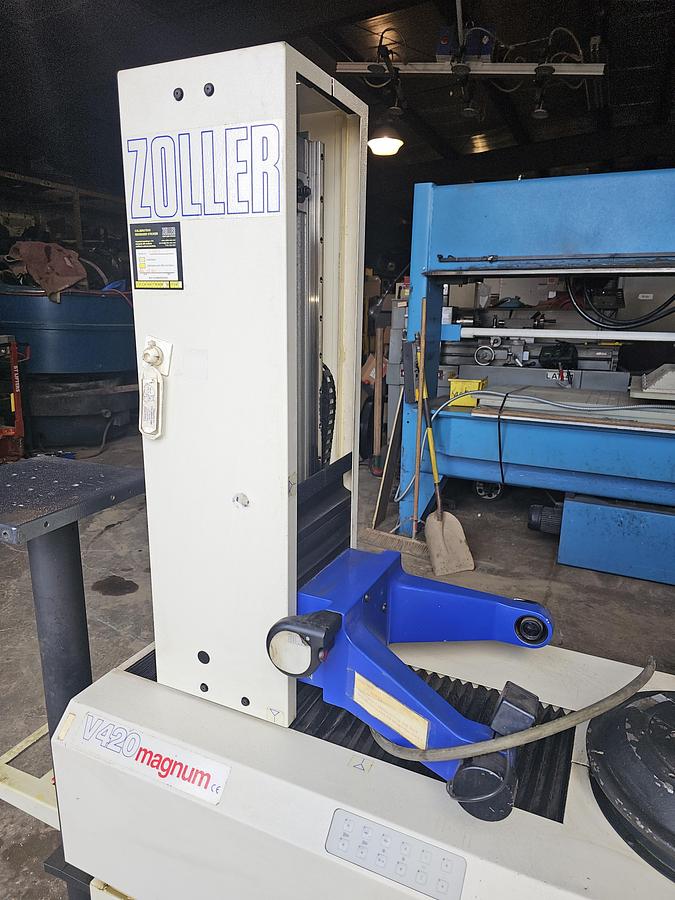

1999 Zoller Magnum V420 E/AWV Tool Presetter Measuring Machine

Zoller Tool Presetter & Measuring Machine

Type #: V420 E/AWV

S/N: 0042

Year: 1999

115V, 1 ph @ 60 Hz

Key Features and Benefits:

• Accuracy and Repeatability: Ensures accurate tool measurements for optimal CNC machining performance.
• Ease of Use: Offers a graphical user interface and single-hand operating device for efficient tool setup.
• Flexibility: Provides a range of hardware and software options for customization and integration into various production environments.
• Automation: Features autofocus and CNC-controlled axes for automated tool measurement, ensuring operator-independent results.
• Networkability: Allows for direct data transfer to CNC machine control units.
• Time Savings: Reduces setup time by providing precise measurements offline, freeing up CNC machines for production.
• Improved Tool Life: Enables accurate tool geometry definition, maximizing tool life and reducing wear.

Technical Specifications:

• Measuring Range: 420 mm workpiece length, up to 10 kg tool weight.
• Accuracy: Repeatability of +/- 0.002 mm, display accuracy of 0.001 mm.
• Spindle: SK 50 high-precision spindle, with concentricity of 0.002 mm.
• Image Processing: Integrated image processing system for fast and operator-independent measurements.

Applications:

The Zoller V420 E/AWV is suitable for measuring and presetting various types of cutting tools, including: End mills, Drills, Reamers, and Grinding wheel packages.
