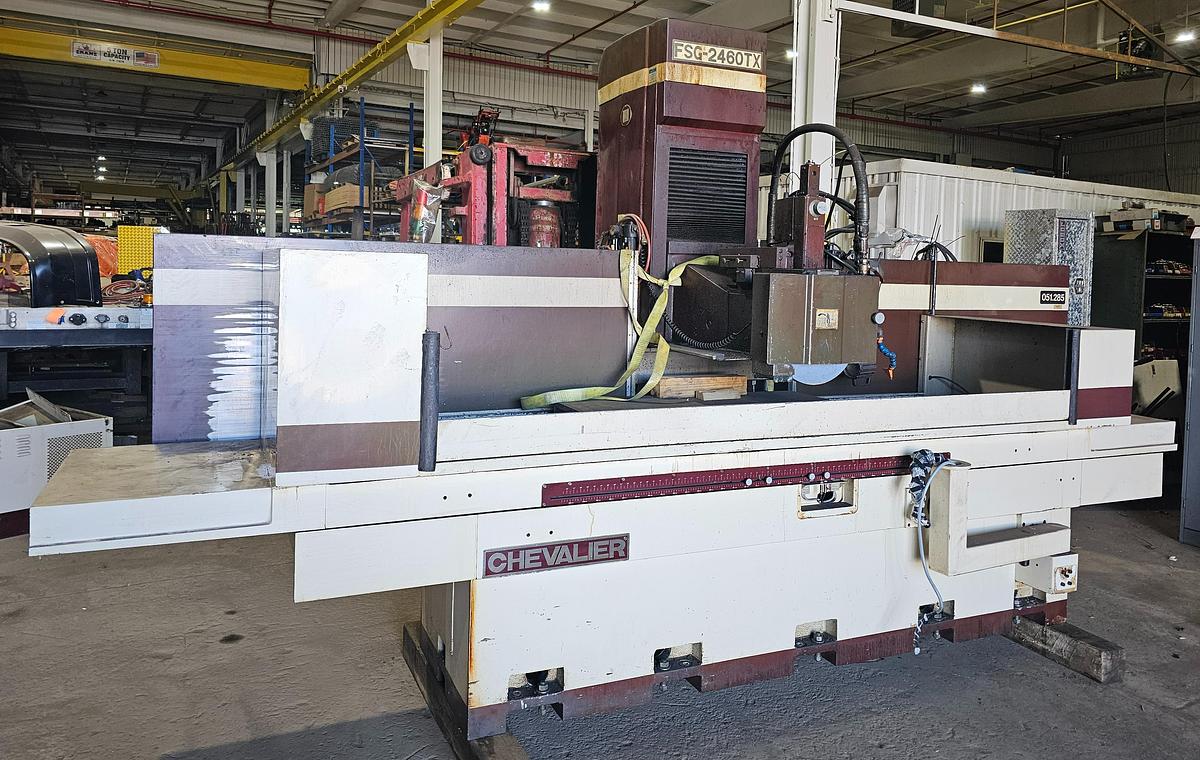

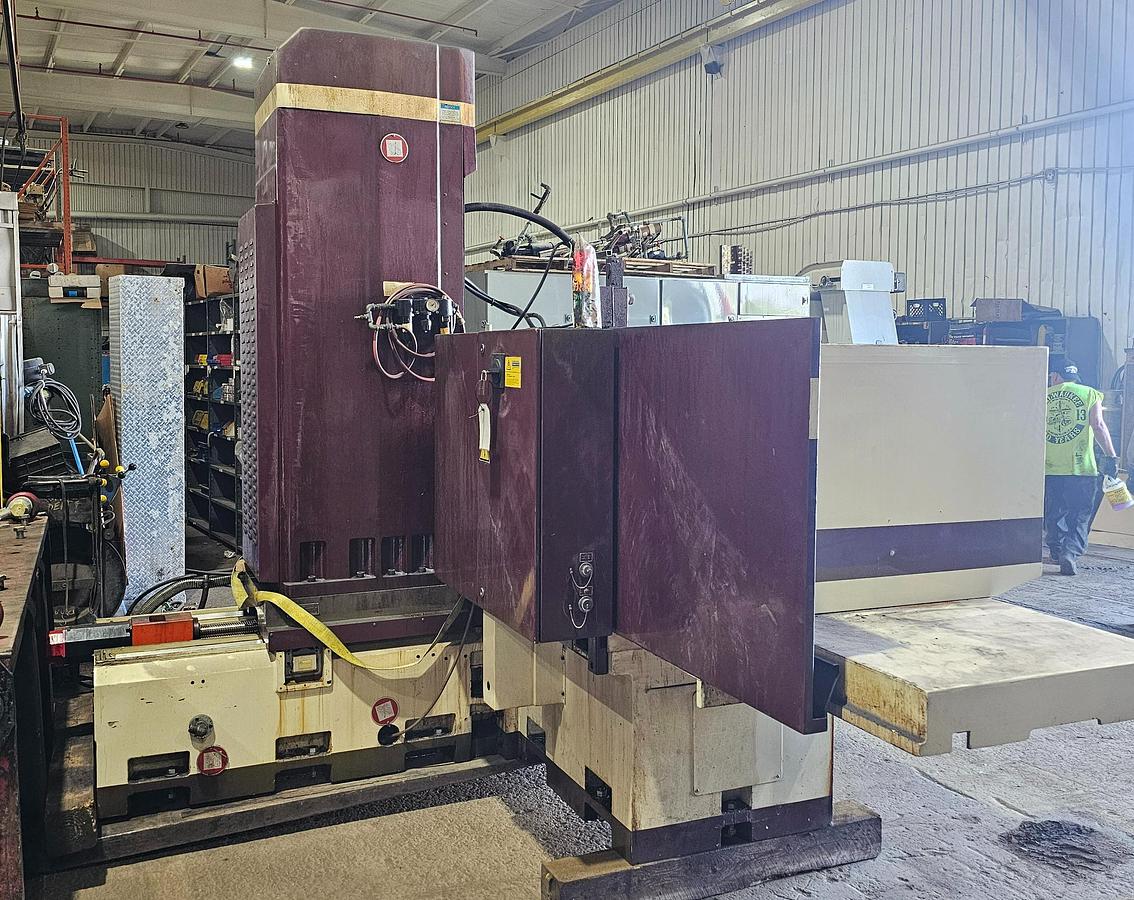

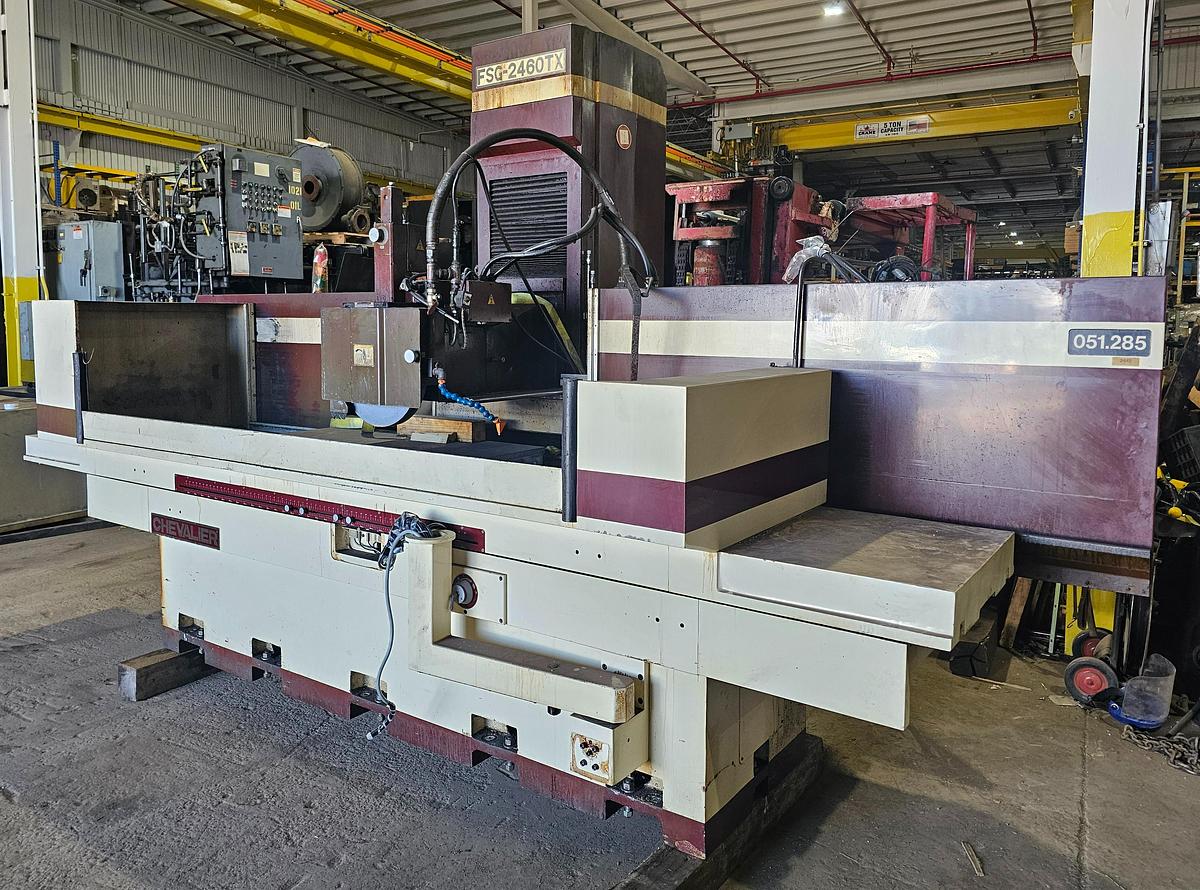

Chevalier FSG-2640TX Automatic 3-Axis Horizontal Hydraulic Surface Grinder

Chevalier Column Type Horizontal Automatic Feed Surface Grinder

3 Axis Horizontal Spindle

Model #: FSG-2640TX

S/N: J485C001

EQUIPPED WITH:

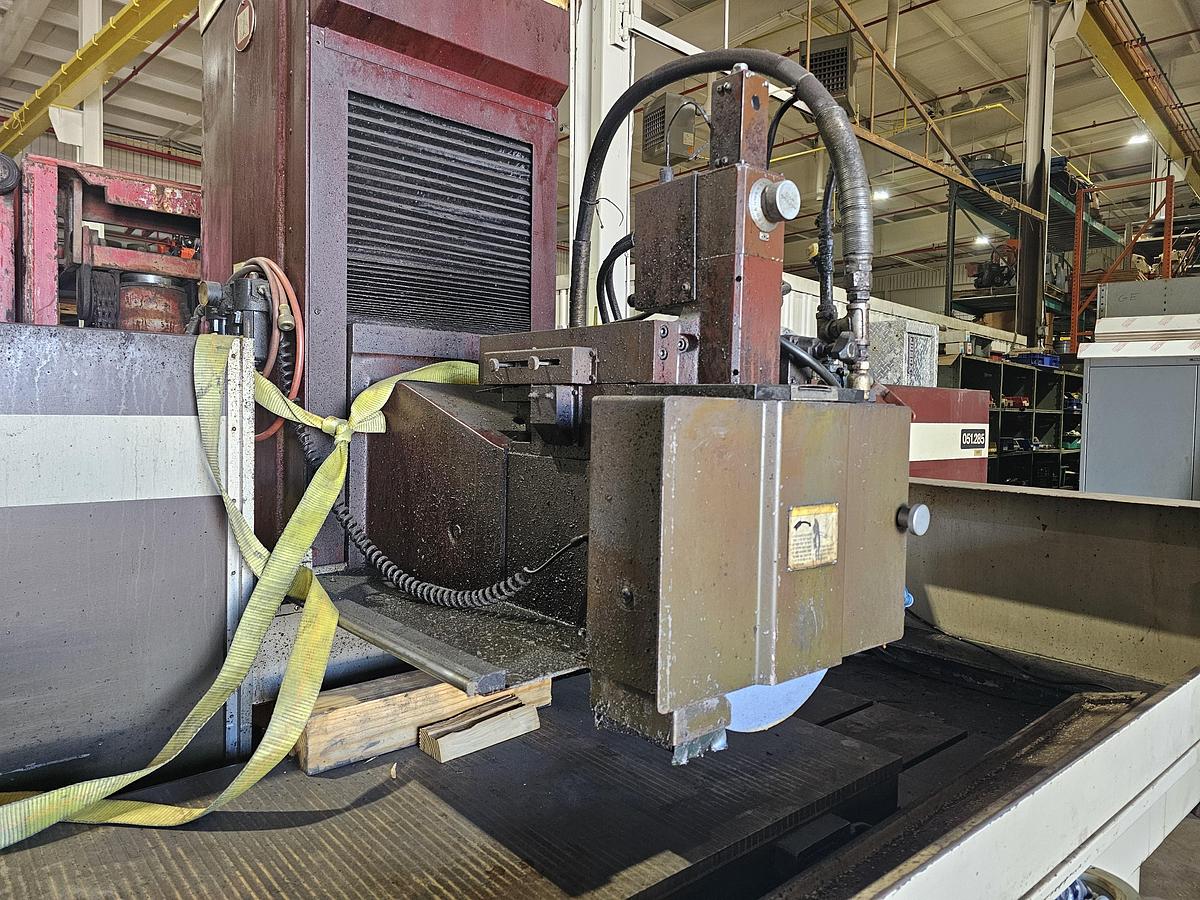

Programmable Over-The-Wheel Dresser Attachment

24" x 48" Electro-Magnetic Chuck

Automatic Incremental Power Down Feed

Automatic Lubrication System

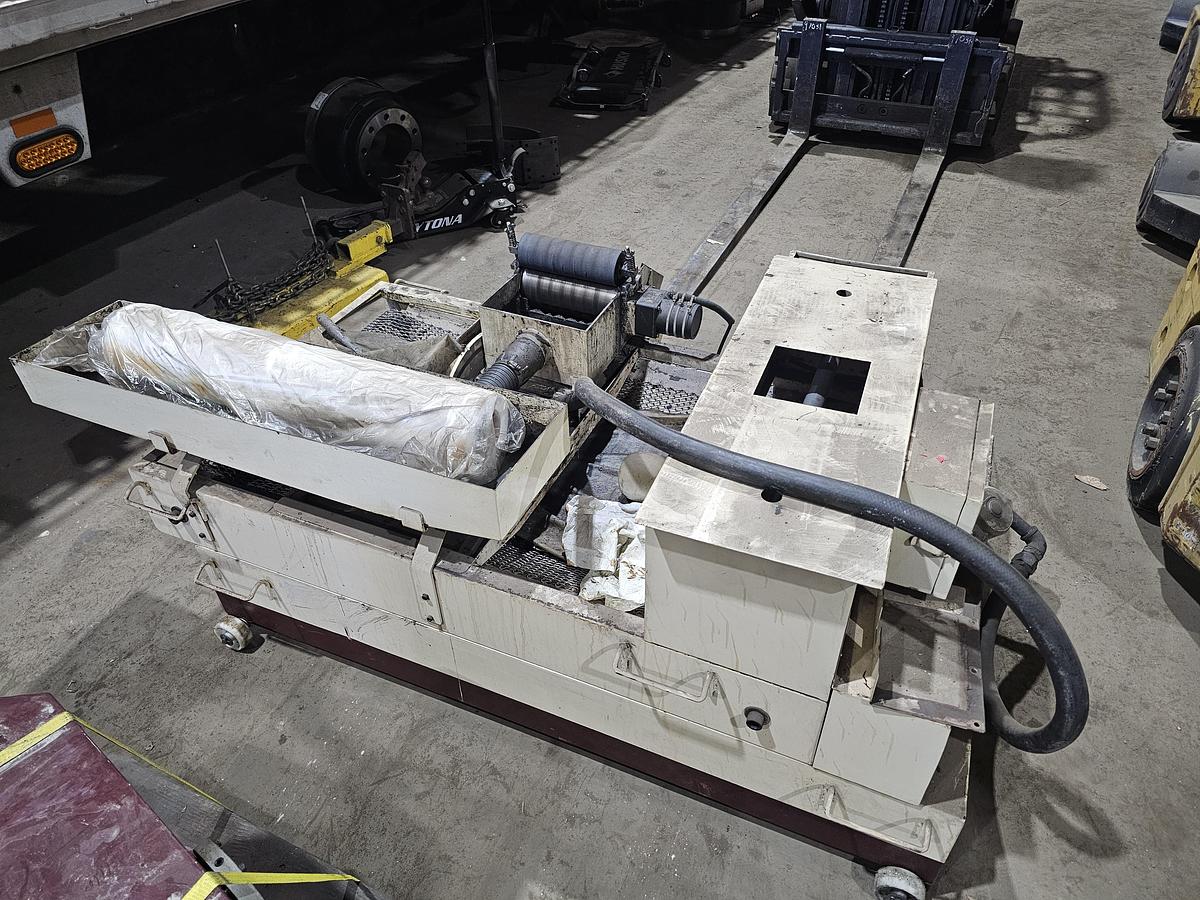

Coolant System w/Paper Filter

CATALOG SPECIFICATIONS:

Table Working Surface, W x L 24" x 60"

Grinding Width Capacity, Maximum 24"

Grinding Length Capacity, Maximum 60"

Table Load Capacity, Maximum 3960 LBS

Height Table to Spindle Center, Maximum 33.46"

Longitudinal Table Travel, Maximum 60"

Crossfeed Table Travel, Maximum 24"

Grinding Wheel Diameter, Maximum 16"

Grinding Wheel Width, Maximum 3"

Grinding Wheel Hole Diameter 5"

Table Longitudinal Feeds, Range 16 to 82 FPM

Incremental Downfeed Automatic, Range .0001" to .002"

Cross Movement Automatic Increment, Range .125" to 2"

Spindle Motor Horsepower 15 HP

Hydraulic Motor Horsepower 5 HP

Floor Space Required, L x W 255" x 134"

Overall Height 108"

Weight Approximately 18000 LBS
