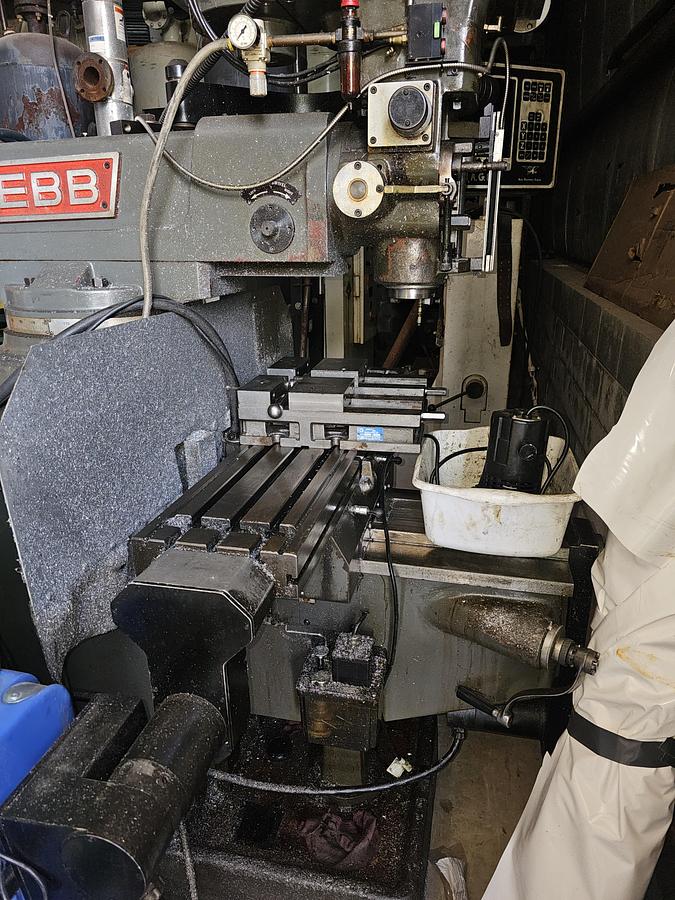

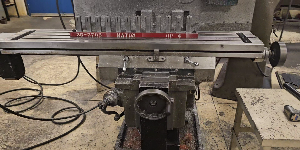

5 Hp Webb 5VK 2-Axis CNC Knee Mill TRAK A.G.E 2 CNC Control

Webb 2-Axis CNC Knee Mill

Table Size:

Model #: 5VK

S/N: 845686

Year Built: 1995

5 Horsepower Motor

220/440V, 3 ph @ 60 Hz

1740 RPM

Variable Speed Spindle Head

TRAK A.G.E. 2 Control

Table Travel (X-axis): 32″

Saddle Travel (Y-axis): 16″

Quill Travel: 6″

Knee Travel (Z-axis manual): 19″

Ram Travel: 24″

Throat Distance (min.): 4 1/4″

Throat Distance (max.): 28 1/4″

Table to Spindle Nose Gage line (min.): 4″

Max. Weight of Workpiece: 750 lbs.

Table

Overall Sizes: 10 x 54″

T-Slots 3 on 2 1/2″ centers

T-Slot Size 5/8″

Height above floor (max.) 51 5/8″
