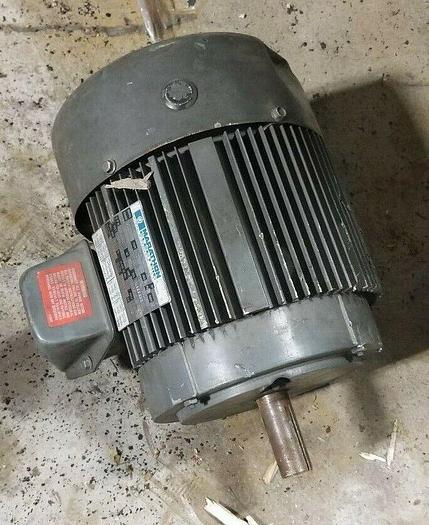

Marathon 3 Hp Electric Motor HVM-182TTFL7001BC-R28W 230/460v 3440 RPM
![Used Marathon 3 Hp Electric Motor HVM-182TTFL7001BC-R28W 230/460v 3440 RPM](https://i.machineryhost.com/a928731e103dfc64c0027fa84709689e/cd54d3fb7430b9cac8546b3c8506d1c8/large-s-l1600.jpg)
Marathon 3 Hp Electric Motor HVM-182TTFL7001BC-R28W 230/460v 3440 RPM
$250 (USD)
Available quantity:1
orCall 414 841 4377
Description

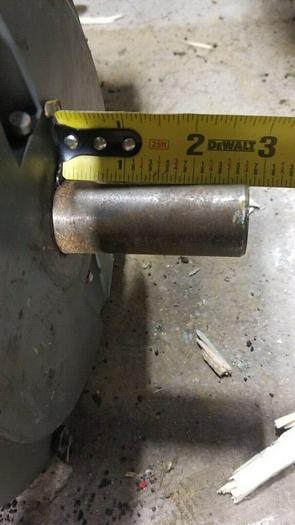

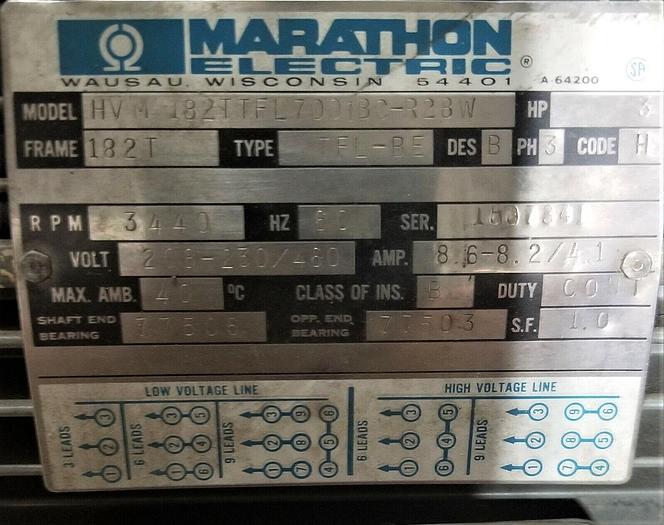

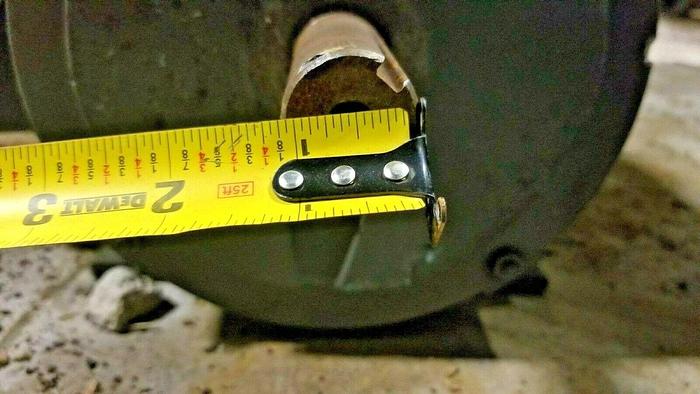

3 Hp MARATHON ELECTRIC MOTOR 208-230/440 VOLT, 3 ph, 60 Hz RPM: 3440 TYPE #: TFL-BE MODEL #: HVM 182TTFL7001BC-R28W CODE: H Service Factor: 1.0 Full Load Amps: 8.6-8.2 Shaft Diameter: 1 1/8'' Shaft Length: 2 3/4''
Specifications
Manufacturer | MARATHON |
Model | HVM-182TTFL7001BC-R28W |
Condition | Used |
Ac motor type | Induction/Asynchronous |
Enclosure type | TFL-BE |
Modified item | No |
Nema design letter | Design B (General Purpose) |
Inverter/vector duty rating | Not Inverter/Vector Duty Rated |
Full load amps | 8.6 |
Nema frame suffix | T |
Ac frequency rating | 50/60 Hz |
Current type | AC |
Actual rated input voltage | 208-230/460 |
Ac phase | 3 |
Insulation class | B (Max 266°F) |
Iec frame size | 180 |
Mounting type | Base-Mounted, Flange-Mounted |
Shaft diameter | 1 1/8 in |
Rated load (hp) | 3 |
Nominal rated input voltage | 208-230/460 Volt |
Reversible/non-reversible | Reversible |
Service factor | 1.00 |
Base rpm | 3440 |
Shaft type | Keyed |
