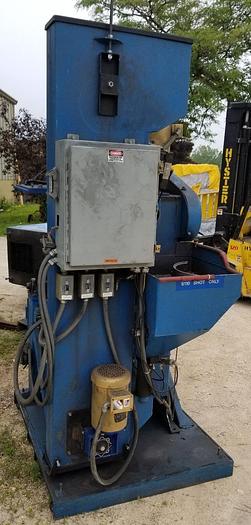

Coyote 1.25 Cu/Ft Shot Blaster w/Cont. Belt Tumble Type Finisher NEEDS 5hp MOTOR

Coyote Shot Blaster - Centrifugal Wheel - Finishing Machine with Continuous Rubber Belt for Tumble Blast Operation. !!! NOTE - NEEDED !!! - THE 5 HP MOTOR WHICH DRIVES THE CENTRIFUGAL SHOT BLAST WHEEL IS MISSING & THEREFORE IS NOT INCLUDED WITH THE UNIT!!! We are attempting to locate a good used or Surplus wheel motor & will include for purchase price if acquired. Worst case, it is available from Coyote for around $3,500. MAIN FEATURES: - Weight/Load Capacity: 150 lbs. - Centrifugal Blast wheel motor: 5 Hp Direct Drive Electrical Requirements:  230/460 Volt, 3 ph, 60 Hz - Operation: Continuous Molded Rubber Belt for Tumbling Product while Slinging Shot w/Continuously Fed Centrifugal Blast Wheel - Low Noise Level - Safety Interlocks - Reversing Mill - Automatic Timer Controls - Low Profile Design - Pneumatic Power Door - Other options are available Blast Wheel Features: - Wheel: 10" diameter - 3600 RPM direct drive wheel. - Balanced wheel components assure smooth operation and maximum abrasive velocity. - Blades: 4x - 2" curved, cast, abrasive resistant alloy blades, unique snap-lock design eases blade replacement. Control Cage: Dial type cage. Wheel Housing: Fabricated from 1/4" steel plate & protected by replaceable cast alloy steel liners. Cabinet Construction Features:  Low profile, 1/4" steel plate, access holes simplify belt replacement and removal of trapped metal on abrasive screen. Work Loading Height: 36" Work Load Capacity: - 17" wide x 20" diameter - 1.25 cubic feet or 150 lbs. Cabinet Door: - Easy opening, pneumatically locked, polyurethane. - The door provides full access to the blast chamber. - The door is positively sealed from abrasive and dust leakage. Conveyor: - 2 ply construction, continuous molded rubber tumble belt - 1/8" diameter abrasive drain holes. - Tumbling ridges are molded directly into the belt. Conveyor Rollers: - Roller Shafts are Solid 1-3/16" diameter. - All rollers are mounted to the cabinet with standard (4) bolt flange bearings. Conveyor Speed: 7.68 FPM. Power & Air Requirements Features: - Type 12 NEMA electrical enclosure - Thermal overload protection for all motors. - 230 or 460 volt operation. - Ammeter - Oil tight push button controls & timer controls for abrasive flow & blast wheel motor. - Mill lockout for blast pattern test. - Air Requirement: 90 - 110 PSI required to operate abrasive valve, door & optional dust collector automatic blow down. Pneumatic door lock, optional power door & dust collector automatic blow down. Electric Motors: - All motors are TEFC to provide maximum life. - Blast Motor: 5 Hp @ 3600 RPM - Mill Drive: 1/3 Hp @ 1800 RPM - Elevator Drive: 1/3 Hp @ 1800 RPM Abrasive Recycling System Features: - Elevator - Dust-tight - Centrifugal discharge belt & bucket elevator with removable service and inspection cover. - Screw adjusted take-up for positive belt adjustment - Unique separator design provides continuous air wash of abrasive, which removes contaminants & unusable abrasive. - Abrasive screening in cabinet eliminates tramp metal from entering blast wheel. Abrasive Control: Totally enclosed, fully adjustable, manual butterfly valve, quietly & precisely controls abrasive flow. Abrasive Required: 100 lbs for initial start-up. Safety & Structural Features: - The blast wheel is only operational when the door is closed. - The chain drive is fully guarded. - Noise Level: Approx. 60 DB Shipping Weight: 1,300 lbs. Machine Dimensions: 36" wide x 47-1/2" deep x 85-1/2" tall.
