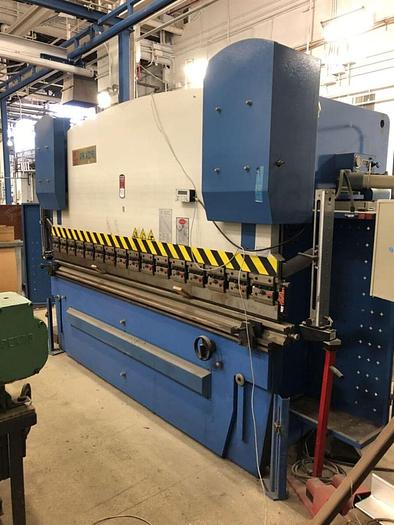

160 Ton 2010 Knuth Hydraulic Press Brake #AHK-A-32160, 8′-10″ B/C & 126″ OAL
![Used 160 Ton 2010 Knuth Hydraulic Press Brake #AHK-A-32160, 8′-10″ B/C & 126″ OAL](https://i.machineryhost.com/a928731e103dfc64c0027fa84709689e/b11b8e807e328d18eb47ffe947d515a1/large-2007-Knuth-8-160-Ton-Capacity-Hydraulic-Press-Brake-AHK-A-32160-2.jpg)
No longer available
160 Ton 2010 Knuth Hydraulic Press Brake #AHK-A-32160, 8′-10″ B/C & 126″ OAL
$44,500 (USD)
Description
Working Area:
Drive capacity
Measures and weights
Knuth Hydraulic Press Brake AHK A 32160
Knuth AHK A 32160
NOTE!!! NO DIES INCLUDED!!
Constant angular accuracy! Heavy press with hydraulic lower table crowning
Hydraulic lower crowning for significantly increased productivity
digital indicator for rear and depth stops
The press brakes of this series are manufactured in standardized bulk series to ensure solid quality and significant cost savings
The frame is made of solid steel weldment for overhead mounting
Manual upper and hydraulic lower crowning ensure high manufacturing qualtiy.
Large torsion shaft guarantees synchronism between both hydraulic cylinders.

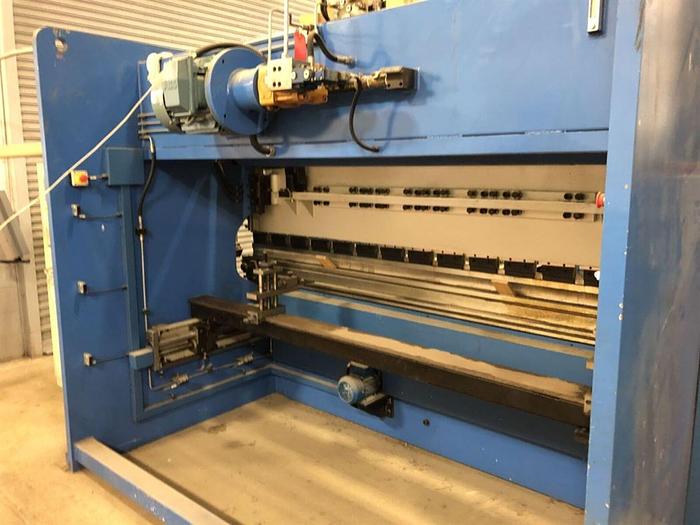

Motorized rear stop with manual micro-adjustments
Motors (from ABB) and hydraulic components from renown manufacturers guarantee high machining quality and high reliability.
Fulfills highest safety standards with Fiessler Safety System, safety interlock, and protective covers
Hardened hydraulic cylinders for long service life
System male dies with 90°, 88°, 60° and 30° angles, plus clamping and radius tools upon request – many types of tools can be shipped within 24 hours
Specifications – AHK A 32160 – Hydraulic Press Brake
Working Area:
Drive capacity
Measures and weights
Standard equipment – AHK A 32160 – Hydraulic Press Brake

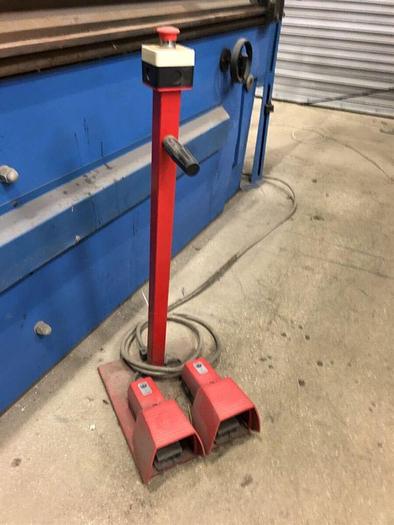

E-position indicator, rear stop, support arms, safety system (make Fiessler), foot pedal
SPEC’S SUBJECT TO FINAL INSPECTION
SELLING “AS IS – WHERE IS” AS DESCRIBED
BUYER IS RESPONSIBLE FOR ALL RIGGING AND SHIPPING CHARGES.
WE CAN ARRANGE RIGGING SERVICES AND SHIPPING ARRANGEMENTS… AGAIN, AT BUYER’S EXPENSE. QUESTIONS: RUSS 4149403288.
Specifications
Condition | Used |
Pressure force | 160 Ton |
Brake length | 3200 mm/126″ |
Rear stop | 600 mm |
Distance between columns | 2700 mm/106″ |
Throat | 350 mm |
Max. stroke length | 160 mm |
Bending speed | 9 mm/s |
Rapid feed | 4800 mm/min |
Return speed | 85 mm/s |
Motor rating | 11 kW |
Hydraulic tank volume | 480 l |
Overall dimensions | 3300mm x 1720mm x 2540 mm |
Weight | 9600 kg |
